Polymer

01Solvent Base Resin

Solvent base resin is synthesis from polyester polyols, chain extending agents and isocyanate in a solvent polymerization. Based on product features, it can be used with different polymeric polyol and suitable additives. Such resins have various excellent functionality, for example, wear-resistant, waterproof, breathable, anti-static, anti-bacterial mold, wear comfortable, and other characteristics.

【Moisture Permeable】
● Application: All kinds of outdoor equipment and garment coating.

【Low Moisture Permeable】
● Application: Adhesive for all kinds of specialty paper, waterproof layer for garment, and leather / furniture adhesive.

02Water Base Resin

Since the rise of environmental awareness in recent years, SBI dedicated to the research and the successful development of water-based PU resin. Compared to traditional solvent-based PU resin, water-based PU resin does not contain solvent. The physical properties are similar to that of traditional solvent-based PU resin, and it will not pollute the environment.
● Application: Leather coating, binder in leather

03PU Foam Resin

Two-liquid-type foam PU, is formed by the synthetic reaction of isocyanate (with NCO on tail) and polyol (with –NH2 on tail). According to different requirement, one could change the percentage of short diol or diamine, catalyst, anti-tacky agent, foaming control agent, or water, etc. The process is under catalyst-condition, causing rapid reaction time. The reaction and foam-growing procedure are usually in 1~30 minutes, and the final properties of foam would be obtain in 1~2 days.
● Application: PU foam wheel, seat, handrails, and outsole, the insert, insole for all kinds of footwear.
● Advantage: Good flexibility, good abrasion resistance, hydrolysis resistance, good compression resilience, light weight.

04Polyester Polyol

Polyester polyol is foamed by condensation of dicarboxy acid and dibasic alcohol. Alcohol would not only be used for long ester chain, but also be contained in the tail group (-OH). Therefore, alcohol should be excess 5~20% for condensation reaction. And the ration of polyacid and polyol should be determined by the desired final molecular weight or equivalent. Polyester polyols contain many ester group in structure, which leads to better product properties than polyether polyol, such as rigidity, thermal stability, permeability, oil resistance and adhesion.
● Application: PU resin, adhesive, foam, elastomer.
● Depends on the choice and the application of polyols, when choosing various polyols as PU formula, one should manipulate the structure of polyols, in order to concern the reaction condition and the usage of catalyst and additive, which would determine the morphology and properties of formed PU polymer.

05PU prepolymer / PU elastomer

Polyurethane elastomer is oligomer molecular chain with reactive isocyanate (-NCO) functional group added to both ends; at the time of infusion, mixing with double amines (-NH2), double alcohol (-OH) and other molecules to produce a high molecular weight polyurethane. Through the use of infusion devices or molds, perfusion can be mass-produced goods, such as industrial rollers, pulleys, roller stakes, PU runway, roofing, caulking construction.
The pre-polymer / elastomer developed by Shuang Bang has the performance between rubber and plastics. According to the recipe design, the products have high resilience, shock absorption, abrasion resistance, oil resistance, tear resistance, chemical corrosion and resistance to radiation and other properties. Customers can adjust formula according to their needs to make a variety of products.
● Application: Automobile industry, building material, shoe material, synthetic leather, medical equipment, sports gear, etc.
● Advantage: A great diversity of products, which covers most of the market demand. Customers can choose the prepolymer according to their needs r processing method or choose a set combination.

Need to use with MOCA

Combination Set

01MDA / 4,4-METHYLENE DIANILINE

MDA is found as pale yellow flaky crystals at room temperature. It is only slightly soluble in water, but dissolves well in alcohols and other organic solvents. As a co-reactant of Epoxy resin, MDA reacts with Epoxy resin to allow the product having the following excellent properties:
● Produce no VOCs as hardening. Good dimensional stability because less shrinkage as reacting.
● High hardness, high flexibility, excellent abrasion resistance.
● Great thermos stability solvent resistance, and insulating properties.
● Strong adhesion with metal, wood, cement, ceramic, glass, etc.
● High storage stability.

02MOCA / 4,4’-METHYLENE-BIS(2-CHLOROANILINE)

4,4’-METHYLENE-BIS-(2-CHLOROANILINE), is also known as MOCA, MBOCA, DACPM, and bis amine. Pure MOCA is a colorless and odorless solid without impurities. MOCA is often made into light color or transparent PU elastomer.
Appearance of SM is granular, which is uniform and could be melted easily. LM is liquid and would not be crystallized in winter. LM could be used directly as processing without melting procedure, energy and labor hour could be reduced, and the product color could keep uniform. Our products are all powder-free and have no irritant odor, which lead to high operation environment safety.

Photoinitiator is a chemical compound that breaks down into free radicals when exposed to light. In industries, photoinitiators are widely used to promote polymerization. In addition to the special formulation of photoinitiator and the adsorption of UV from high-intensity UV light curing equipment, the resin will produce free radicals or ions, which will lead to polymerization, crosslinking and grafting reactions. Resins (UV coatings, inks, adhesives, etc.) can be transferred from liquid to solids in seconds.

Product Formula Appearance Purity
(%)
M.P.
(℃)
Volatile
(%)
Max.abs. band
(nm)
SB-PI 701
(EAB)
C21H28N2O Light yellow to light green yellow solid powder ≧99% 92-98°C ≦0.5% 248nm
376nm
SB-PI 702
(BCIM)
C42H28Cl2O4 Yellow crystalline solid ≧99% 195-205°C ≦0.5% 263nm
SB-PI 703
(1173)
C10H12O2 Colorless to light yellow liquid ≧97% - - 260nm
360nm
SB-PI 704
(EDB)
C11H15NO2 White to light yellow/white solid powder ≧99% 62-65°C ≦0.5% 310nm
SB-PI 712
(MBP)
C14H12O White powder crystal ≧99% 55-57°C ≦0.2%
SB-PI 714
(184)
C13H16O2 White solid powder ≧98% 46-49°C ≦0.5% 244nm
330nm
SB-PI 718
(TPO)
C22H21PO2 Yellow solid powder ≧97% 87-93°C ≦0.5% 260nm
360nm
SB-PI 719
(819)
C26H27O3P Yellow solid powder ≧99% 131-135°C ≦0.5% 295nm
370nm
SB-PI 751
(BDK)
C16H16O3 White crystalline solid ≧99% 63-67°C ≦0.2% 250nm
340nm
SB-PI 769
(369)
C23H30N2O2 Light yellow solid powder ≧98% 110-114°C ≦0.5% 320nm
SB-PI 777
(I-907)
C15H21O2NS White to beige solid powder ≧99% 72-75°C ≦0.25% 305nm
SB-PI 788
(ITX)
C16H14OS Light yellow solid powder >98% 74-76°C ≦0.5% 260nm
380nm
SB-PI 794
(784)
C30H22F4N2Ti Yellow to orange powder ≧99% 165-170°C ≦0.5% 488nm
532nm
SB-PI 799
(DETX)
C17H16OS Light yellow solid powder ≧98% 66-70°C ≦0.5% 257mm
382mm
Product General Properties Application
SB-PI 701
(EAB)
Good photoinitiator UV curing system
SB-PI 702
(BCIM)
Good photoinitiator UV curing system
SB-PI 703
(1173)
Liquid type photoinitiator. Solvent-like. Able to reduce the viscosity of formula. Wood paint,clear finishing varnish,clear varnish,paper varnish,UV curable adhesive
SB-PI 704
(EDB)
Good photoinitiator Printing ink,wood,paper,and metal varnish
SB-PI 712
(MBP)
SB-PI 714
(184)
Non-yellowing photoinitiator Wood paint,clear finishing varnish,clear varnish,paper varnish,UV curable adhesive
SB-PI 718
(TPO)
Photoinitiator with longer adsorption wavelength Mostly applied to white system
SB-PI 719
(819)
Photoinitiator with longer adsorption wavelength Mostly applied to white system. Printing ink,wood,paper and metal varnish
SB-PI 751
(BDK)
High efficiency photoinitiator UV curing system
SB-PI 769
(369)
High efficiency photoinitiator Applied to colorful UV curing system
SB-PI 777
(I-907)
High efficiency photoinitiator Mostly applied to GBK ink system. Usually applied as photoinsist or solder mask of electronics industry
SB-PI 788
(ITX)
High efficiency photo sensitizer,especially for color system Used to enhance photo sensitivity with SB-PI 777
SB-PI 794
(784)
High efficiency photoinitiator used as a UV-absorbent,pharmaceutical intermediates or used in UV-curing paints and inks
SB-PI 799
(DETX)
High efficiency photo sensitizer,especially for color system Used to enhance photo sensitivity with SB-PI 777
Product Formula Appearance Purity
(%)
M.P.
(℃)
Volatile
(%)
Max.abs. band
(nm)
SB-PI 701
(EAB)
C21H28N2O Light yellow to light green yellow solid powder ≧99% 92-98°C ≦0.5% 248nm
376nm
SB-PI 702
(BCIM)
C42H28Cl2O4 Yellow crystalline solid ≧99% 195-205°C ≦0.5% 263nm
SB-PI 703
(1173)
C10H12O2 Colorless to light yellow liquid ≧97% - - 260nm
360nm
SB-PI 704
(EDB)
C11H15NO2 White to light yellow/white solid powder ≧99% 62-65°C ≦0.5% 310nm
SB-PI 712
(MBP)
C14H12O White powder crystal ≧99% 55-57°C ≦0.2%
SB-PI 714
(184)
C13H16O2 White solid powder ≧98% 46-49°C ≦0.5% 244nm
330nm
SB-PI 718
(TPO)
C22H21PO2 Yellow solid powder ≧97% 87-93°C ≦0.5% 260nm
360nm
SB-PI 719
(819)
C26H27O3P Yellow solid powder ≧99% 131-135°C ≦0.5% 295nm
370nm
SB-PI 751
(BDK)
C16H16O3 White crystalline solid ≧99% 63-67°C ≦0.2% 250nm
340nm
SB-PI 769
(369)
C23H30N2O2 Light yellow solid powder ≧98% 110-114°C ≦0.5% 320nm
SB-PI 777
(I-907)
C15H21O2NS White to beige solid powder ≧99% 72-75°C ≦0.25% 305nm
SB-PI 788
(ITX)
C16H14OS Light yellow solid powder >98% 74-76°C ≦0.5% 260nm
380nm
SB-PI 794
(784)
C30H22F4N2Ti Yellow to orange powder ≧99% 165-170°C ≦0.5% 488nm
532nm
SB-PI 799
(DETX)
C17H16OS Light yellow solid powder ≧98% 66-70°C ≦0.5% 257mm
382mm

Product Appearance Color
(Gardner)
Water Content
(%)
Amine Value
(m mole/g)
Free Aniline
(%)
Viscosity
(cps/30℃)
ISOCROSSTMSM Cylindrical Solid <13 <0.1 7.4-7.6 <0.1 -
ISOCROSSTM LM Brown Liquid <13 <0.2 3.68-3.84 - <8000
Product Appearance
Melting Point
(℃)
Amine Value
(m mole/g)

Viscosity
(cps/40℃)
ISOCROSSTM MDA Light Yellow Flake Solid 90-93 9.9 - 10.3 -
ISOCROSSTM MDA-60 Yellow to Brown Liquid - 9.63 - 10.16 9000-15,000
Articles Appearance Solvent
Composition

Purity
Viscosity
(104 cps/25℃)
Solid content (%) 100%
Mod
(kg/cm2)
Tensile
(kg/cm2)
Elongation
(%)
Feature and Purpose
AB-245S Clear to light yellow DMF/MEK 50,000~80,000 45±1 10±5 >25 >400 Two component PU resin for direct coating 376nm
AB-237S Clear to light yellow DMF/MEK/TOL 60,000~80,000 35±1 10±5 >50 >450 Two component PU resin for direct coating
AB-1597S C10H12O2 MEK 15,000~25,000 19-21 - - - Microporous PU resin. No swelling,soft hand feel and great tearing strength
AB-2017S Light yellow DMF/MEK 40,000~60,000 45±1 - - - PU resin for direct coating
Articles Appearance Solvent
Composition

Purity
Viscosity
(104 cps/25℃)
Solid content (%) 100%
Mod
(kg/cm2)
Tensile
(kg/cm2)
Elongation
(%)
Feature and Purpose
AB-127S Clear to light yellow DMF/TOL 40,000~60,000 30±1 35±1 >150 >400 One component PU resin for direct coating
AB-1360F Milky white DMF 10,000~50,000 29.5~32.5 40-70 >120 >350 Hand feeling soft and dry,anti-tear,scratch resistance
AB-1995S Turbid yellowish DMF/MEK/TOL 20,000~40,000 30±1 15-25 >70 >700 One component PU resin for direct coating
AB-1830S Milky white MEK 20,000~50,000 30±1 15-30 >100 >500 One component microporous PU resin. Great hand feeling,washability.
AB-1046SS Milky white to light yellow DMF/TOL/MEK 30,000~70,000 30±1 30-50 >120 >400 One component PU resin for direct coating. Great adhesive with PVC.
Articles Appearance Solvent
Composition

Purity
Viscosity
(104 cps/25℃)
Solid content (%) 100%
Mod
(kg/cm2)
Tensile
(kg/cm2)
Elongation
(%)
Feature and Purpose
AB-7060S Light yellow DMF/TOL 90,000~110,000 60±1 - - - High transparency and after tack resistance
AB-260 Clear to light yellow viscid liquid DMF/MEK 4,000~6,000% 20±1 20-40 >300 >350 Excellent adhesive,works well with furniture and leather transfer
AB-247S Clear to light yellow viscid liquid MEK/TOL 40,000~70,000 45±1.5 - - - Great adhesive and washability
Articles Appearance Solvent
Composition

Purity
Viscosity
(104 cps/25℃)
Solid content (%) 100%
Mod
(kg/cm2)
Tensile
(kg/cm2)
Elongation
(%)
Feature and Purpose
AB-126OKA Turbid,yellowish DMF/TOL 30,000~60,000 28±1 30-60 >250 >300 Great adhesive with PU and PVC
AB-123S Turbid,yellowish DMF/EAC 70,000~100,000 28±1 40-70% >150 >400 Great adhesive with PU and PVC
AB-123OKA Turbid,yellowish DMF/TOL 40,000~60,000 28±1 40-70% >150 >400 Great adhesive with PU and PVC. Blocking resistance,hand feeing soft and dry,no after tack.
CD-1203 Light yellow DMF/MEK 70,000~100,000 30±1 >250 >400 >150 Great abrasion,hand feeling dry
AB-109K Turbid,yellowish DMF/TOL 30,000~60,000 28±1 30±10 >180 >500 Great adhesive with PU and PVC; Blocking resistance

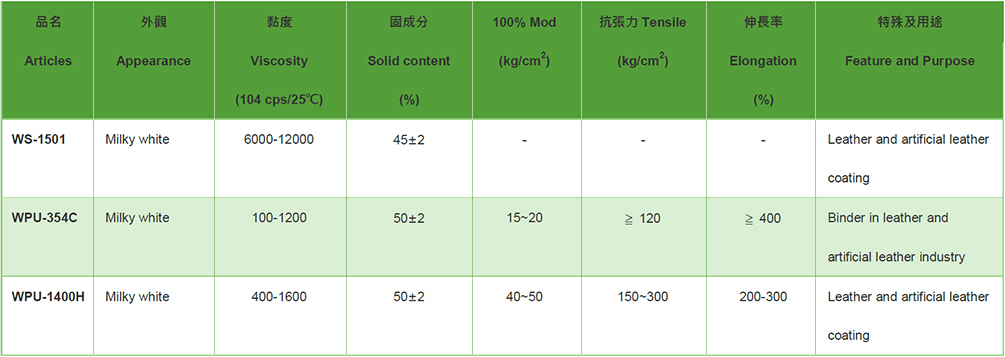

Articles Appearance
Viscosity
(104 cps/25℃)
Solid content
(%)
100%
Mod
(kg/cm2)
Tensile
(kg/cm2)
Elongation
(%)
Feature and Purpose
WS-1501 Milky white 6000-12000 45±2 Leather and artificial
leather coating
WPU-354C Milky white 100-1200 50±2 15~20 ≧ 120 ≧ 400 Binder in leather and artificial
leather industry
WPU-1400H Milky white 400-1600 50±2 40~50 150~300 200-300 Leather and artificial leather
coating
Isocyanate
(B)
Polyol
(A)
Oper.Temp.
(℃)
Mold
Density
(g/cm3)
Hardness
(AskerC)
Tear
(kg/cm)
Tensile
(kg/cm2)
Elongation
(%)
Purpose Properties
B-250 A-650 40 0.425±0.25 75-80 15-20 25-30 250-300 PU foam wheel Hydrolysis resistance,
good compression resilience
B-914 A-016 40 0.25±0.02 27-35 5-7 7-10 >230 Sports shoes,casual shoes Good flexibility,
good compression resilience
B-270 A-150

Articles Component Water Content
(%)
Acid Value
(mgKOH/g)
OH Value
(mgKOH/g)
Color
(APHA)
Functionality
BA-1000T AA/BG <0.05 <0.8 110~114 <80 2
BA-2000 AA/BG <0.05 <0.8 52~60 <80 2
BA-3000 AA/BG <0.05 <0.8 35~39 <80 2
BA-4000 AA/BG <0.05 <0.8 26~30 <80 2
BDA-3000 AA/DEG/BG <0.05 <0.8 35~39 <80 2
DA-1000 AA/DEG <0.05 <0.8 105~115 <80 2
DA-2000 AA/DEG <0.05 <0.8 52~60 <80 2
EA-1000 AA/EG <0.05 <0.8 108~116 <80 2
EA-2000 AA/EG <0.05 <0.8 52~60 <80 2
EBA-1000T AA/BG/EG <0.03 <0.8 108~116 <80 2
EBA-2000T AA/BG/EG <0.03 <0.8 54~58 <80 2
EDA-2000T AA/DEG/EG <0.05 <0.8 52~60 <80 2
NA-100 AA/DEG/EG <0.05 <0.8 71~77 <80 2
NA-130 AA/BG <0.05 <0.8 34~40 <80 2
NA-200 AA/BG/EG <0.05 <0.8 52~60 <80 2
P-14 AA/BG/EG <0.05 <0.8 105~115 <80 2
Articles NCO
(%)
MOCA phr Viscosity
(cps/x℃)
Pot life
(Min./100℃)
Hardness Tensile strength
(kg/cm2)
Elongation
(%)
Remark
SB-365 3.7±0.3 10.5~11.0 ? 5 85±2A >250 >400 PTMEG type
SB-430P 4.3±0.3 12~12.5 40,000±10,000/25℃ 5 90±2A >170 >400 PPG type
SB-435T 4.5±0.3 12~12.5 <6,000/80℃ 10 90±2A PTMEG type
SB-600P 6.0±0.3 18.0 <4,000/70℃ 5 95±2A PPG type
SB-631 6.3±0.2 18.0~19.0 <6,000/80℃ 2--3 95±2A PTMEG type
Articles NCO
(%)
MOCA phr Viscosity
(cps/x℃)
Pot life
(Min./100℃)
Hardness Tensile strength
(kg/cm2)
Elongation
(%)
Remark
SW-880A/SW-880B/HQEE 8.8±0.2 Refer to TDS <1000/110℃ 1/110℃ 86±2A >200 >450 PTMG type
SW-885A/SW-885B 11.5±0.2 P/I=1/1 <5000/25℃ 5/25℃ 83±2A >200 >400 PPG type
SW-382P/SW-810I 10.0±0.2 P/I=1/1 <5000/25℃ 5/25℃ 82±2A >200 >400 PPG type
SW-395P/SW-912I 12.0±0.2 P/I=1/1 <5000/25℃ 5/25℃ 93±2A >200 >400 PPG type
